Elbow
The elbow joins the distal humerus to the radius and ulna. Routine elbow imaging is an AP, a lateral and two obliques; the Coyle methods add axial views of the radial head and coronoid process.
Overview
Bones
Distal humerus
- Capitulum (lateral)
- Trochlea (medial)
- Lateral epicondyle
- Medial epicondyle
- Olecranon fossa
- Coronoid fossa
Proximal radius
- Radial head
- Radial neck
- Radial tuberosity
Proximal ulna
- Olecranon
- Trochlear notch
- Coronoid process
- Radial notch
CRITOE, the order the pediatric ossification centers appear: Capitulum, Radial head, Internal (medial) epicondyle, Trochlea, Olecranon, External (lateral) epicondyle.
Registry must-knows
- On a lateral with the elbow at 90°, a visible posterior fat pad suggests a joint effusion and an occult fracture.
- Radial head fractures are the most common elbow fracture in adults; supracondylar fractures are the most common in children.
- External (lateral) oblique frees the radial head, neck and tuberosity from the ulna. Internal (medial) oblique shows the coronoid process in profile.
- If the elbow can't extend, take two APs: one with the humerus parallel to the IR and one with the forearm parallel.
Show 1 more
- Coyle: elbow 90°, CR 45° toward the shoulder for the radial head; elbow 80°, CR 45° away from the shoulder for the coronoid.
3D model
Loading 3D…
Radiographs 4
Pick a film, then a structure to circle it.
Projections 6
Tap a projection for positioning, central ray and image criteria. See every exam in the Positioning Guide ›
AP elbow
CR: Perpendicular
- Position
- Arm fully extended, hand supinated, epicondyles parallel to the IR. Shoulder at the level of the elbow.
- Central ray
- Perpendicular
- Centering
- Mid-elbow joint
- Typical technique
- 60–65 kVp · 3–5 mAs · 40" SID
Image criteria
- No rotation: epicondyles in profile.
- Radial head, neck and tuberosity slightly superimposed on the proximal ulna.
- Elbow joint open; olecranon seated in the olecranon fossa.
Lateral elbow (lateromedial)
CR: Perpendicular
- Position
- Elbow flexed 90°, humerus and forearm on the same plane, hand lateral (thumb up).
- Central ray
- Perpendicular
- Centering
- Mid-elbow joint
- Typical technique
- 60–65 kVp · 3–5 mAs · 40" SID
- Best shows
- Olecranon in profile and the anterior and posterior fat pads
Image criteria
- Elbow flexed 90°; humeral epicondyles superimposed.
- Three concentric arcs: trochlear sulcus, double ridges of the capitulum and trochlea, and the trochlear notch.
- Radial head partly superimposes the coronoid process; olecranon in profile.
AP oblique, lateral (external) rotation
CR: Perpendicular
- Position
- From the AP, rotate the hand and arm 45° laterally (hand supinated).
- Central ray
- Perpendicular
- Centering
- Mid-elbow joint
- Typical technique
- 60–65 kVp · 3–5 mAs · 40" SID
- Best shows
- Radial head, neck and tuberosity free of the ulna; capitulum and lateral epicondyle
Image criteria
- Radial head, neck and tuberosity free of superimposition.
- Capitulum and lateral epicondyle in profile.
- Elbow fully extended.
AP oblique, medial (internal) rotation
CR: Perpendicular
- Position
- From the AP, rotate the hand and arm 45° medially (hand pronated).
- Central ray
- Perpendicular
- Centering
- Mid-elbow joint
- Typical technique
- 60–65 kVp · 3–5 mAs · 40" SID
- Best shows
- Coronoid process in profile; trochlea and medial epicondyle
Image criteria
- Coronoid process in profile.
- Radial head and neck superimposed by the proximal ulna.
- Elbow fully extended.
Axiolateral for the radial head
CoyleCR: 45° toward the shoulder
- Position
- Elbow flexed 90°, hand pronated.
- Central ray
- 45° toward the shoulder
- Centering
- Radial head (mid-elbow joint)
- Typical technique
- 65–70 kVp · 4–6 mAs · 40" SID
- Best shows
- Radial head and capitulum, projected away from the coronoid
Image criteria
- Radial head and capitulum free of superimposition.
- Joint space between them open.
Axiolateral for the coronoid
CoyleCR: 45° away from the shoulder
- Position
- Elbow flexed 80°, hand pronated.
- Central ray
- 45° away from the shoulder
- Centering
- Coronoid process (mid-elbow joint)
- Typical technique
- 65–70 kVp · 4–6 mAs · 40" SID
- Best shows
- Coronoid process in profile
Image criteria
- Coronoid process elongated and in profile.
- Distal humerus and coronoid separated.
Technique values are typical starting points; follow your department's technique chart.

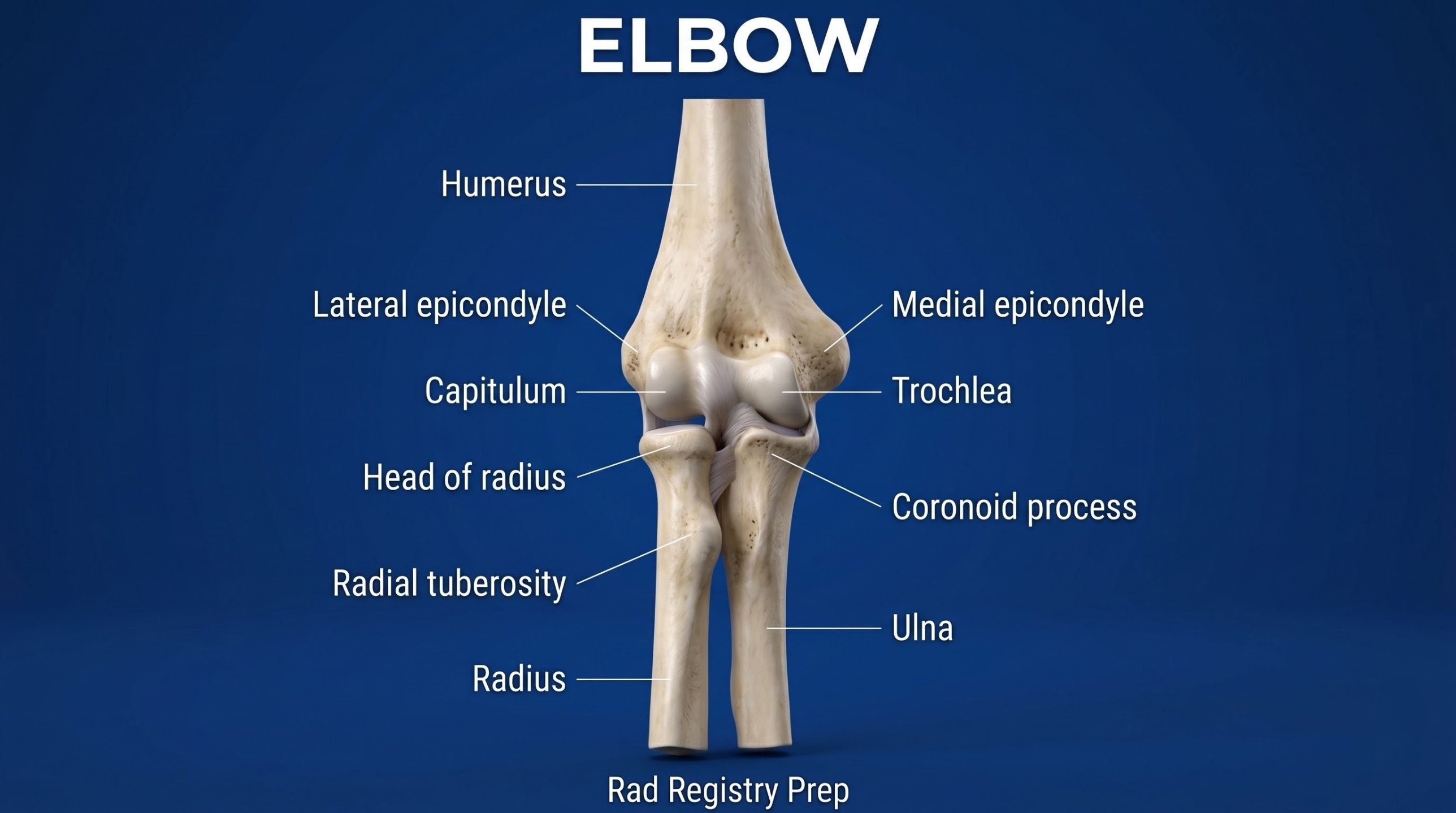

Labeled diagrams
Quick check
2. This AP elbow of a 6-year-old was obtained after surgery. Two crossed metal pins pass through the distal humerus. Which injury are the pins MOST likely stabilizing?
3. A patient cannot fully extend the elbow, which stays flexed about 45°. Two AP projections are needed. For the image of the proximal radius and ulna, how is the arm positioned?
4. How is the elbow positioned for a true lateral elbow like this one?
5. Which evaluation criterion shows that this lateral elbow is correctly positioned?
