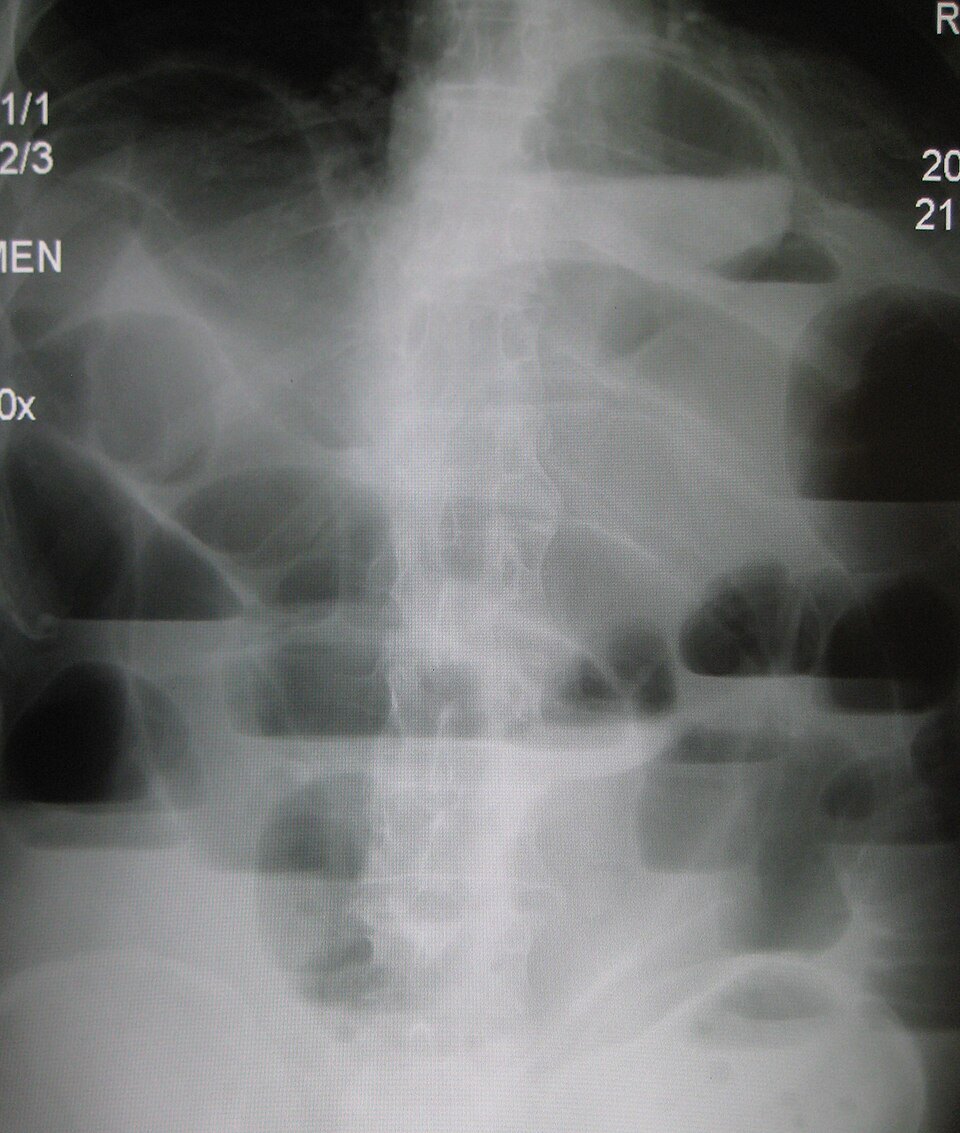

1. The multiple air-fluid levels at different heights in dilated bowel loops on this upright abdomen are MOST consistent with which condition?
Abdomen
The routine abdomen is a supine AP (KUB). An acute abdomen series adds an erect abdomen (or left lateral decubitus) and often a PA chest to look for free air and air–fluid levels.
Overview
Bones
Bony landmarks
- Iliac crest (L4–L5)
- Lower ribs
- Lumbar spine
- Pubic symphysis
- ASIS
Soft-tissue structures
- Kidneys
- Psoas margins
- Liver edge
- Bladder
- Bowel gas pattern
KUB: center at the iliac crest and include the pubic symphysis. Erect abdomen: center about 2 inches above the crest to include the diaphragm.
Registry must-knows
- Expose on expiration: the diaphragm rises and the abdomen is less compressed.
- Free intraperitoneal air rises under the diaphragm on an erect film; left lateral decubitus shows it over the liver.
- Keep the patient erect or on the side for about 5 minutes (10–20 if possible) before an erect or decubitus image.
- Routine gonadal shielding is no longer recommended (AAPM 2019, NCRP 2021); follow department policy, and never let a shield cover anatomy of interest.
Show 1 more
- Hypersthenic patients may need two IRs placed crosswise.

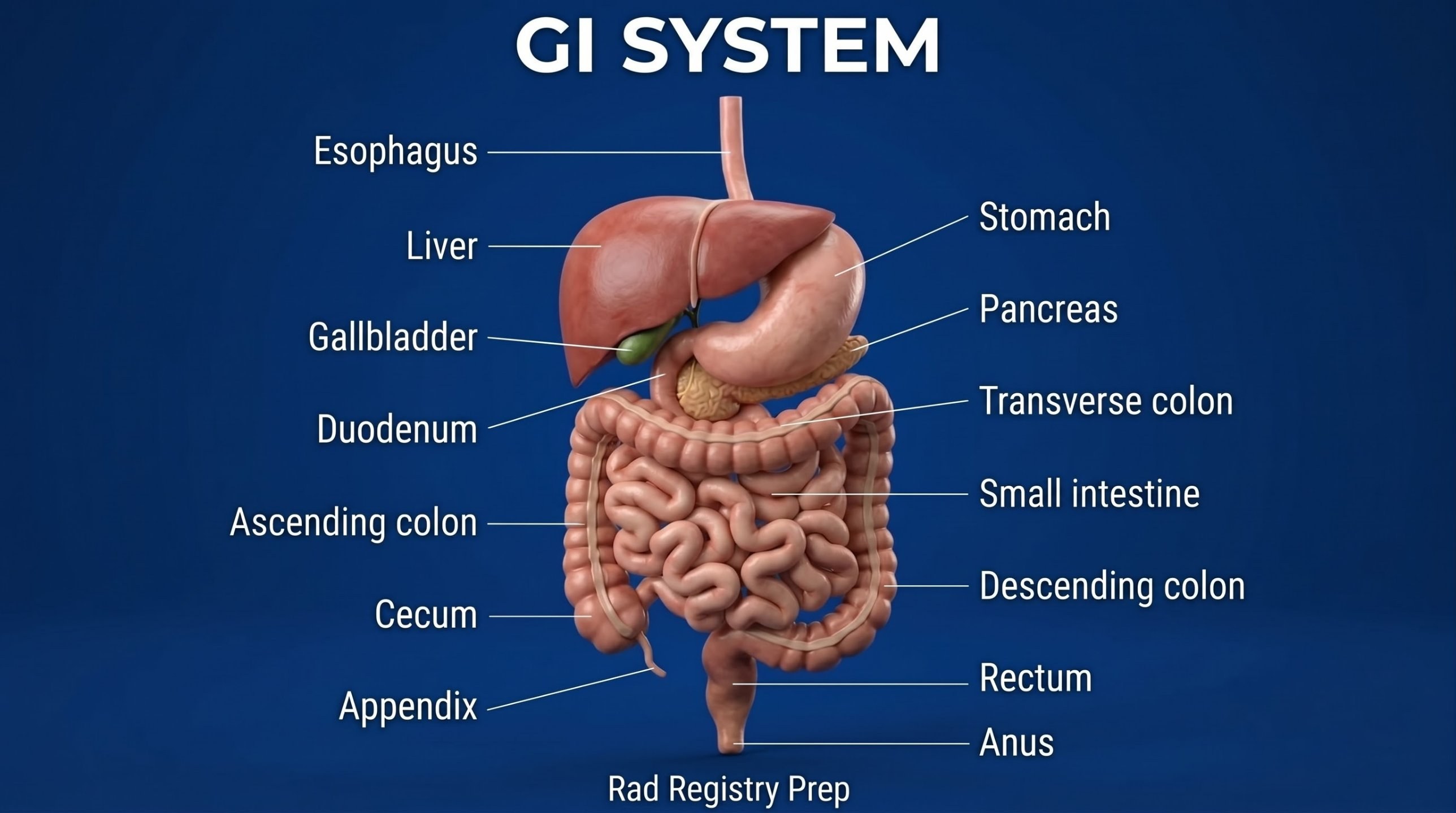

3D model
Loading 3D…
Radiographs 3
Pick a film, then a structure to circle it.
Projections 3
Tap a projection for positioning, central ray and image criteria. See every exam in the Positioning Guide ›

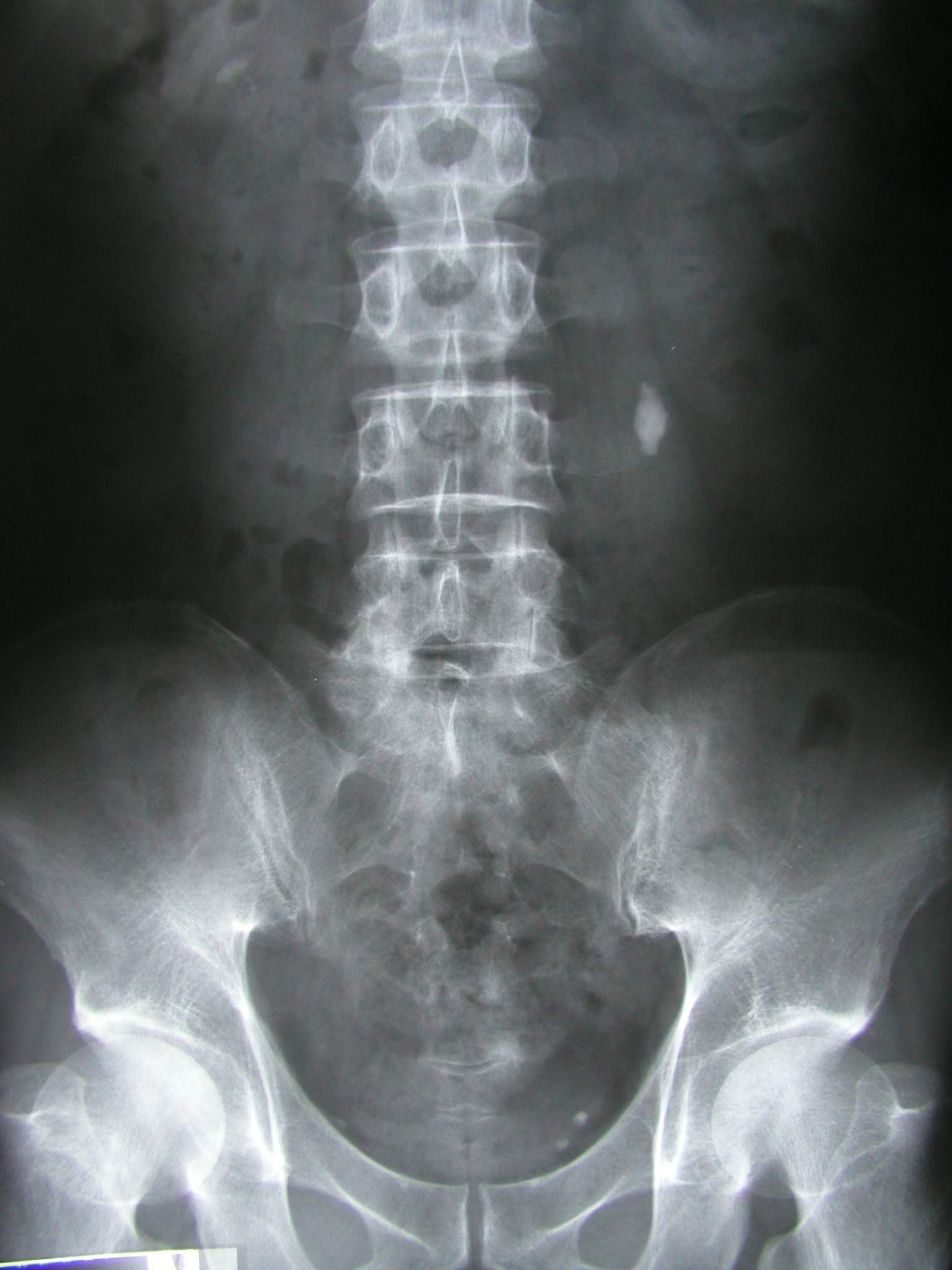

AP abdomen, supine (KUB)
CR: Perpendicular
- Position
- Supine, MSP centered, arms at the sides; expose on expiration.
- Central ray
- Perpendicular
- Centering
- Iliac crest
- Typical technique
- 75–85 kVp · 20–40 mAs · 40" SID
Image criteria
- Pubic symphysis to the upper kidneys included.
- No rotation: iliac wings and obturator foramina symmetric.
- Psoas margins, kidney outlines and lower liver edge seen.

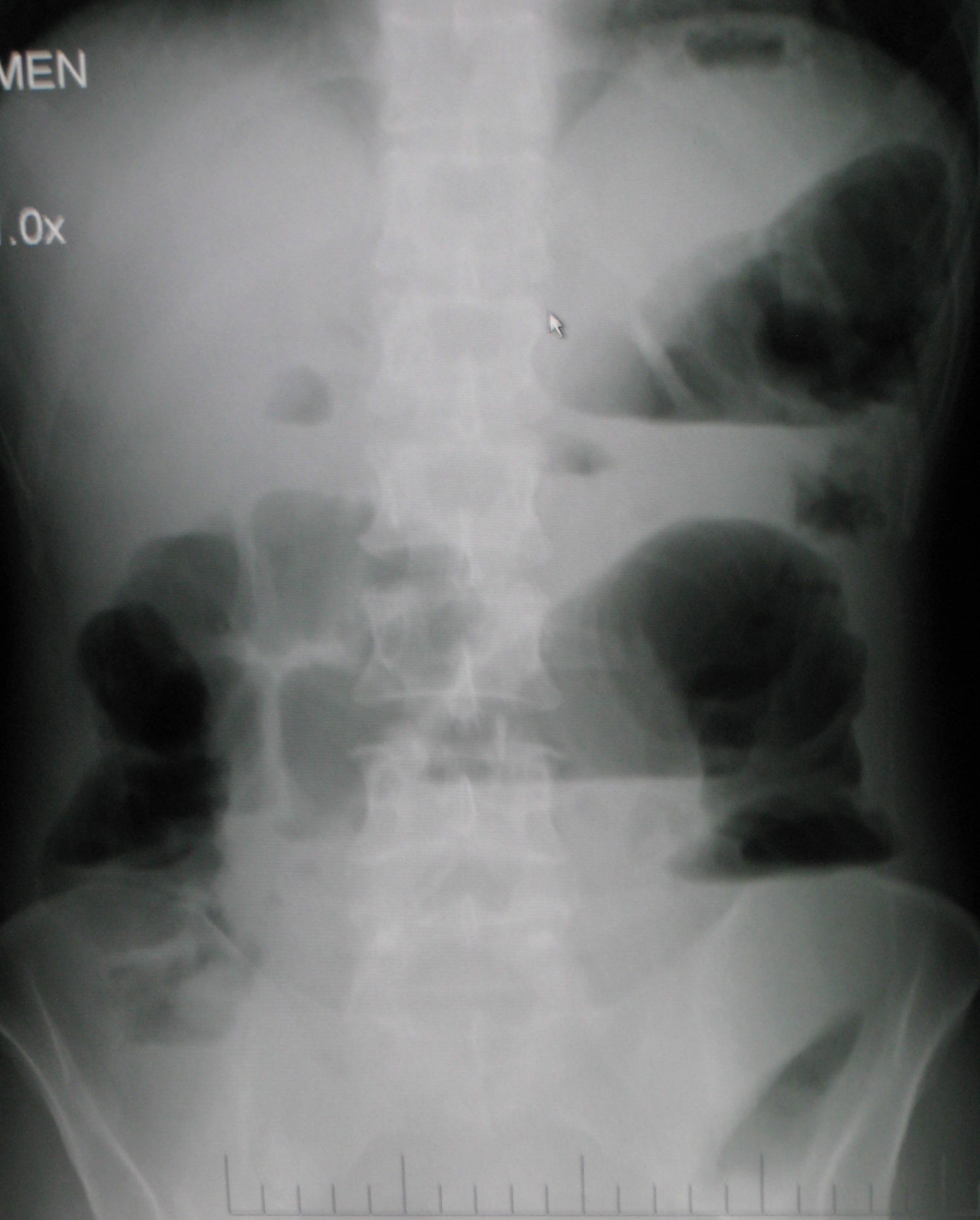

AP abdomen, erect
CR: Horizontal
- Position
- Erect, back to the IR, after 5 minutes upright if possible; expiration.
- Central ray
- Horizontal
- Centering
- About 2 inches above the iliac crest (to include the diaphragm)
- Typical technique
- 75–85 kVp · 25–50 mAs · 40" SID
Image criteria
- Both hemidiaphragms included.
- Air–fluid levels shown.
- No rotation.

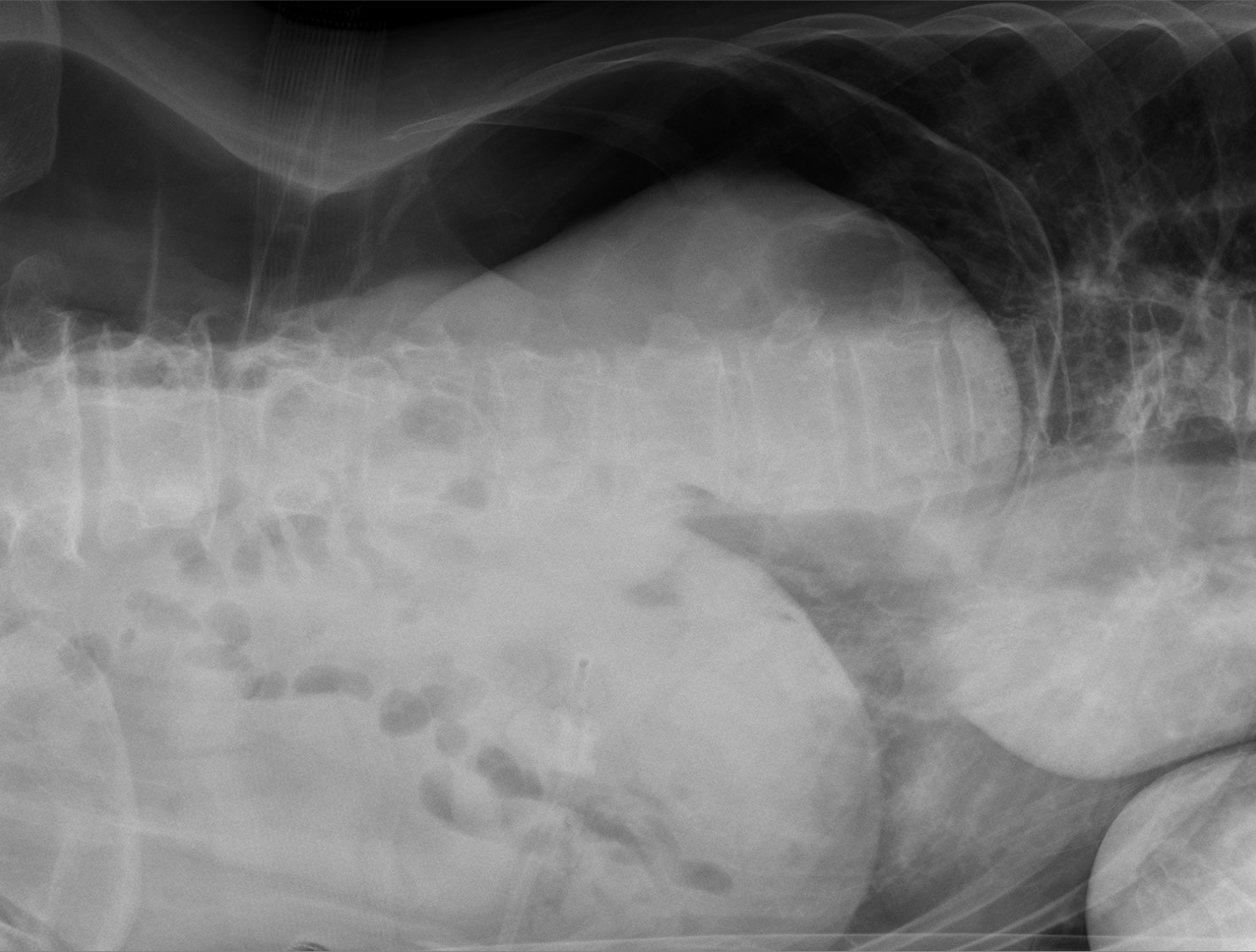

AP abdomen, left lateral decubitus
CR: Horizontal
- Position
- Lying on the left side for 5 minutes or more; arms up.
- Central ray
- Horizontal
- Centering
- About 2 inches above the iliac crest
- Typical technique
- 75–85 kVp · 25–50 mAs · 40" SID
- Best shows
- Free air over the liver (right side up)
Image criteria
- Right side of the abdomen and diaphragm included.
- Horizontal beam for air–fluid levels.
Technique values are typical starting points; follow your department's technique chart.
